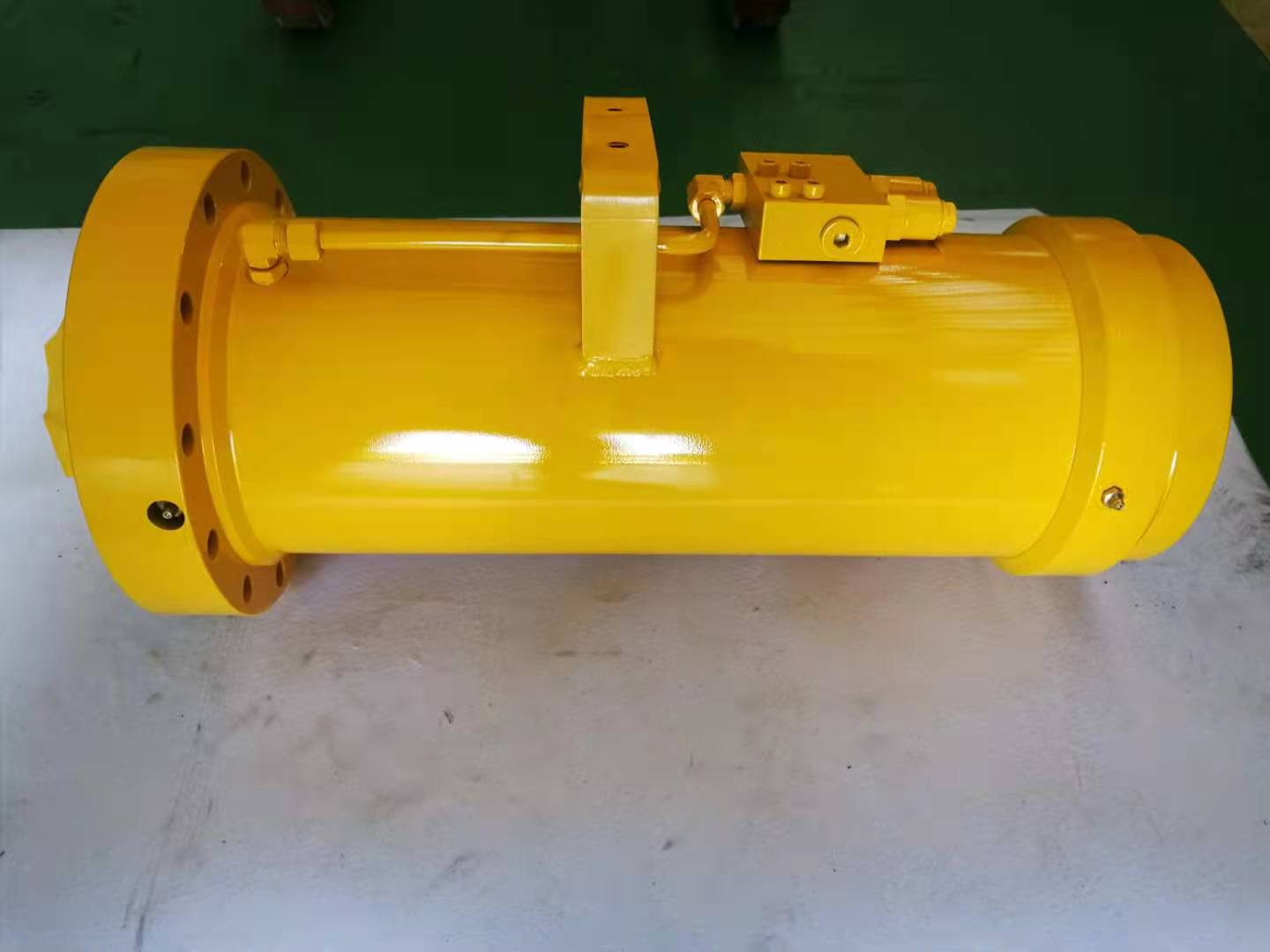

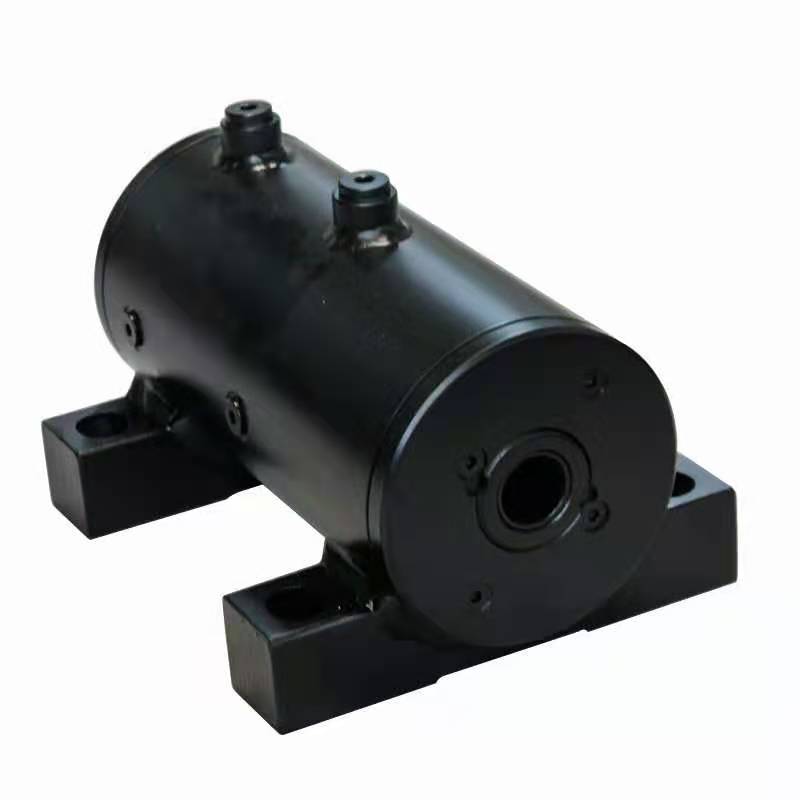

DC series Specification | 2 | 4 | 6 | 10 | 20 | 30 | |||
Torque | |||||||||
Drive | @3000psi | In-lb | 1700 | 3000 | 5500 | 9500 | 15000 | 25000 | |
@210bar | Nm | 190 | 340 | 620 | 1080 | 1700 | 2850 | ||
Holding | In-lb | 5600 | 10600 | 16800 | 33600 | 50500 | 83200 | ||
Nm | 630 | 1200 | 1900 | 3800 | 5700 | 9400 | |||
Maximum Moment Capacity | |||||||||
Cantilever mount | In-lb | 5000 | 9000 | 20000 | 50000 | 11000 | 100000 | ||
Nm | 565 | 1020 | 2260 | 5650 | 4990 | 11300 | |||
Straddle mount | In-lb | 5000 | 9000 | 20000 | 50000 | 11000 | 100000 | ||
Nm | 565 | 1020 | 2260 | 5650 | 4990 | 11300 | |||
Capacity | |||||||||
Radial | lb | 2000 | 3000 | 4000 | 8000 | 11000 | 15000 | ||
kg | 907 | 1360 | 1850 | 3630 | 4990 | 6800 | |||
Axial | lb | 2000 | 3000 | 4000 | 8000 | 11000 | 15000 | ||
kg | 907 | 1360 | 1850 | 3630 | 4990 | 6800 | |||
Displacement | |||||||||
180° | in³ | 4.2 | 7.1 | 11.7 | 22.9 | 33.7 | 55.8 | ||
cm³ | 69 | 117 | 192 | 375 | 552 | 915 | |||
360° | in³ | 7.8 | 14.2 | 23.7 | 44.8 | 67.4 | 112.3 | ||
cm³ | 128 | 233 | 389 | 734 | 1105 | 1840 | |||
Weight | |||||||||
180° | lb | 18 | 27 | 33 | 58 | 100 | 129 | ||
kg | 8 | 12 | 15 | 26 | 45 | 58 | |||
360° | lb | 22 | 36 | 42 | 82 | 133 | 193 | ||
kg | 10 | 16 | 19 | 37 | 60 | 87 | |||
Dimension | |||||||||

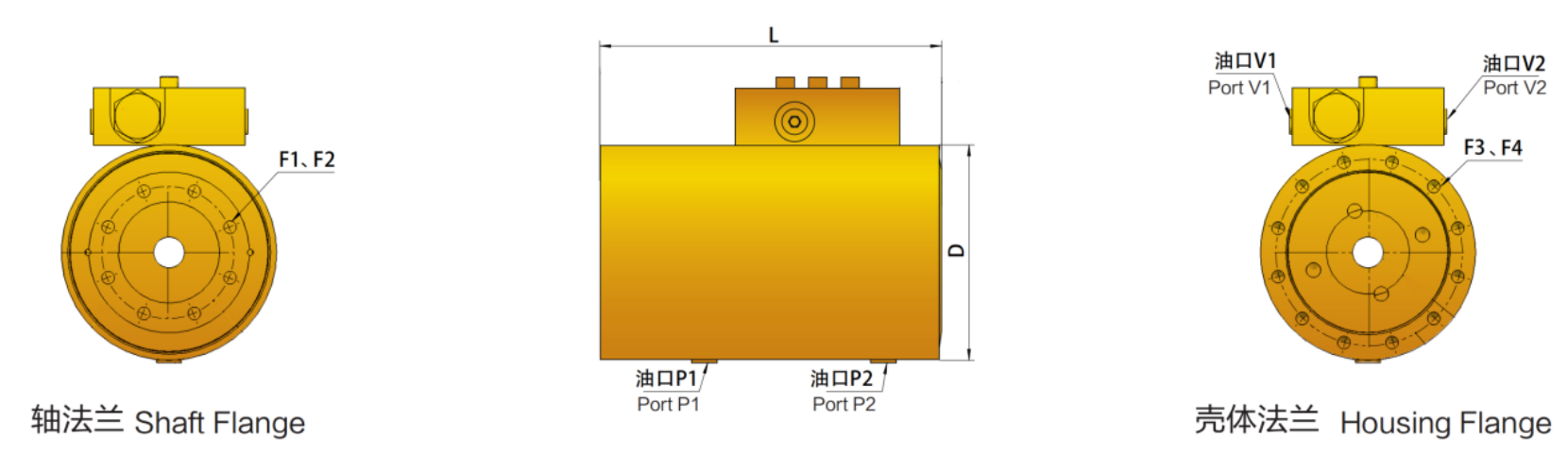

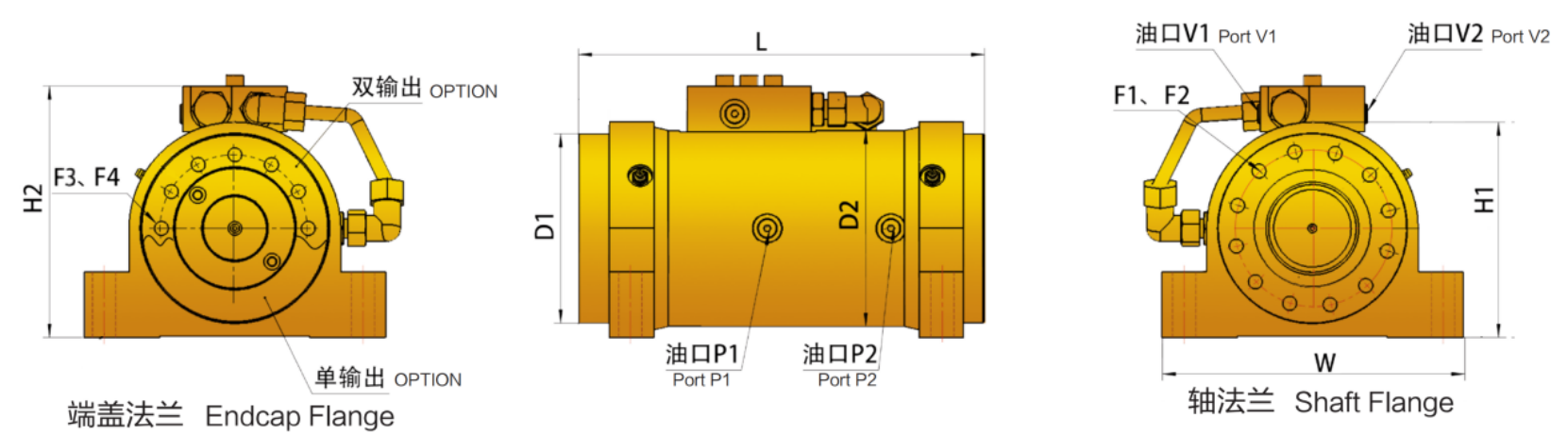

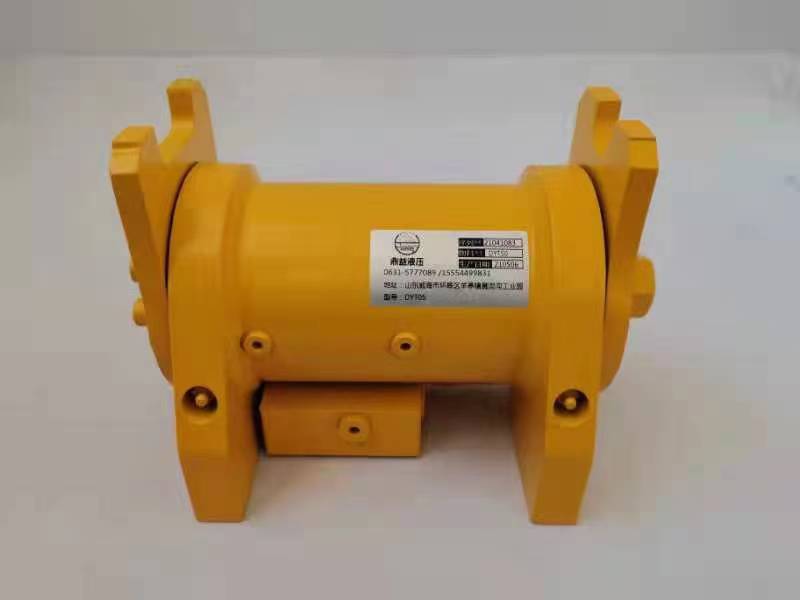

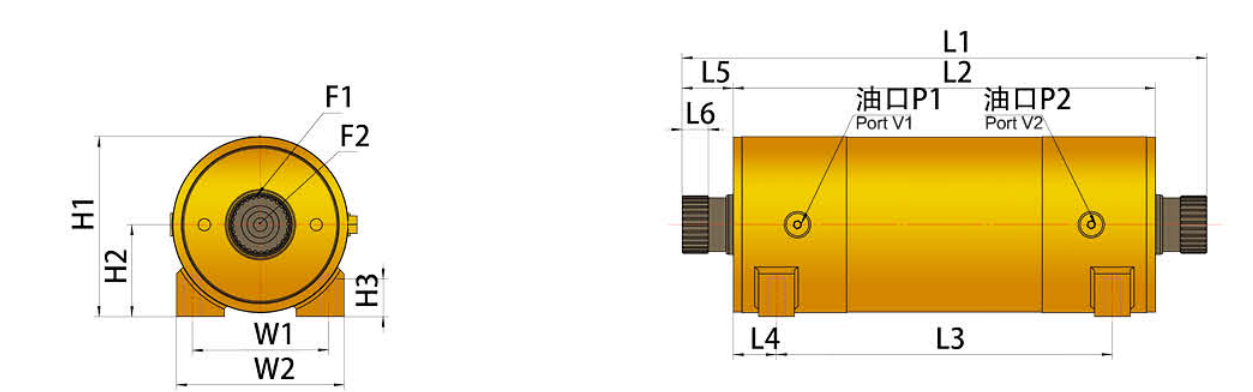

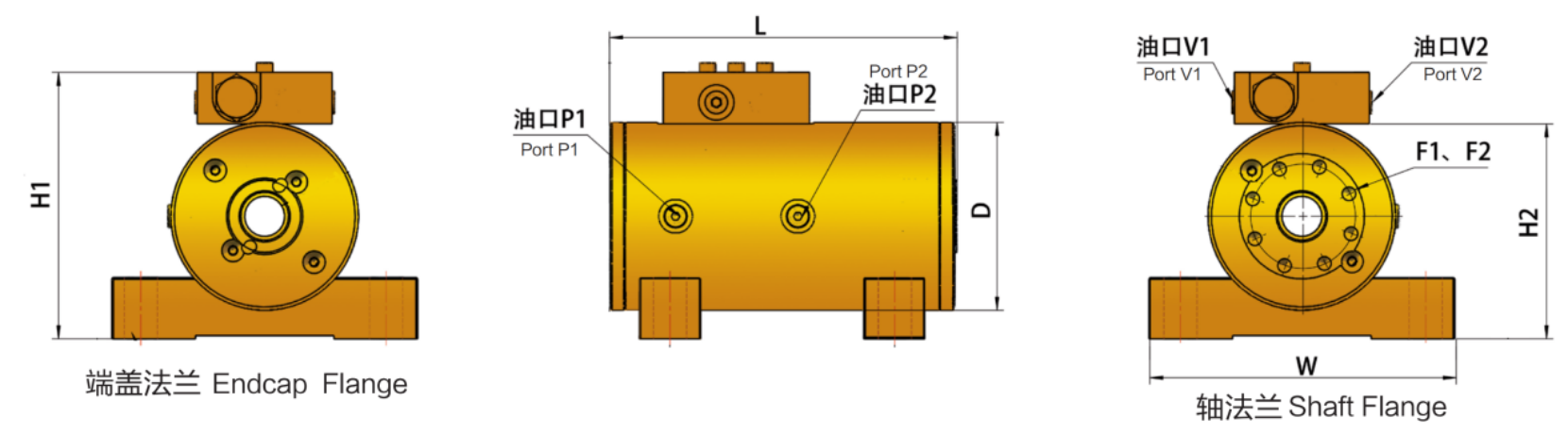

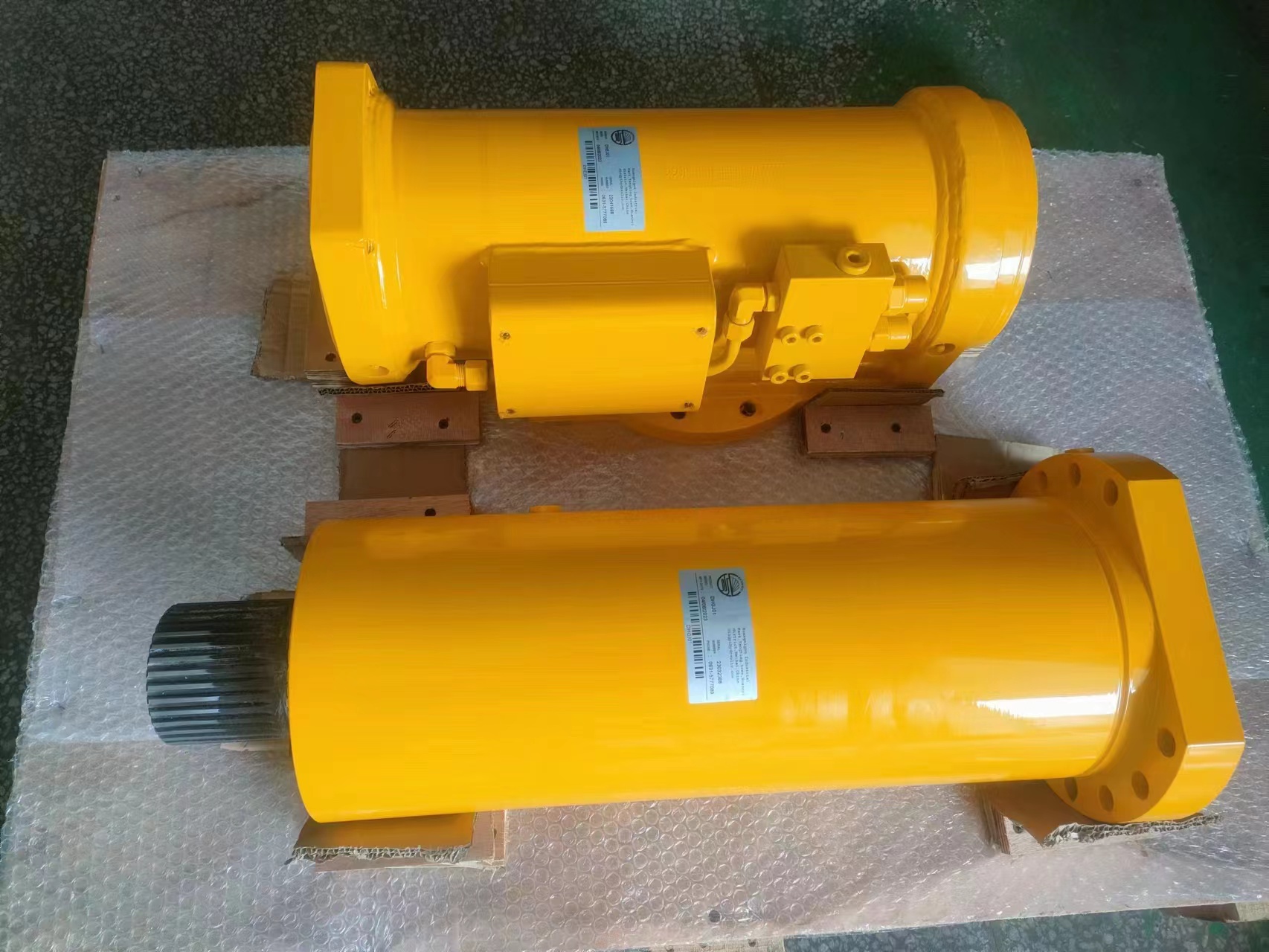

L(Length) | 180° | in/mm | 5.50/140 | 5.63/143 | 6.13/156 | 7.25/184 | 8.83/224 | 9.50/241 | |
360° | in/mm | 7.02/178 | 7.45/189 | 8.35/212 | 10.15/258 | 12.25/311 | 13.64/346 | ||
D(Diameter) | in/mm | 3.93/100 | 4.68/119 | 5.31/135 | 6.67/135 | 7.75/197 | 8.88/225 | ||
F1,F2 | inch | 8X5/16-18X0.5 | 8X5/16-18X0.5 | 12X3/8-16X0.63 | 12X1/2-13 X0.75 | 12X1/2-13 X0.75 | 12X5/8-11X1.0 | ||
Ø2.125 B.C. | Ø2.875 B.C. | Ø3.125 B.C. | Ø4.000 B.C. | Ø5.000 B.C. | Ø5.500 B.C. | ||||
metric | 8XM8-1.25X12 | 8XM8-1.25X12 | 12XM10-1.5X14 | 12XM12-1.75X19 | 8XM8-1.25X12 | 12XM16-2.05X25 | |||
Ø54 B.C. | Ø73 B.C. | Ø80 B.C. | Ø102 B.C. | Ø127 B.C. | Ø140 B.C. | ||||
F3,F4 | inch | 8X5/16-18X0.5 | 8X5/16-18X0.5 | 12X3/8-16X0.63 | 12X1/2-13 X0.75 | 12X1/2-13 X0.75 | 12X5/8-11X1.0 | ||
Ø2.125 B.C. | Ø2.875 B.C. | Ø3.125 B.C. | Ø4.000 B.C. | Ø5.000 B.C. | Ø5.500 B.C. | ||||
metric | 8XM8-1.25X12 | 8XM8-1.25X12 | 12XM10-1.5X14 | 12XM12-1.75X19 | 8XM8-1.25X12 | 12XM16-2.05X25 | |||
Ø54 B.C. | Ø73 B.C. | Ø80 B.C. | Ø102 B.C. | Ø127 B.C. | Ø140 B.C. | ||||
DM series Specification | 5 | 10 | 20 | 30 | 35 | 45 | |||
Torque | |||||||||
Drive | @3000psi | In-lb | 4500 | 8200 | 15000 | 25000 | 30000 | 39000 | |
@210bar | Nm | 500 | 930 | 1690 | 2850 | 3390 | 4400 | ||
Holding | In-lb | 11500 | 21200 | 38900 | 63700 | 71600 | 93000 | ||
Nm | 1300 | 2400 | 4400 | 7200 | 8100 | 10500 | |||
Maximum Moment Capacity | |||||||||
Cantilever mount | In-lb | 12000 | 22000 | 48000 | 100000 | 11000 | 140000 | ||
Nm | 1360 | 2490 | 5420 | 11300 | 12700 | 15800 | |||
Straddle mount | In-lb | 22500 | 40000 | 90000 | 200000 | 223000 | 280000 | ||
Nm | 2540 | 4520 | 10170 | 22600 | 25230 | 31650 | |||
Capacity | |||||||||
Radial | lb | 3050 | 4700 | 9230 | 12300 | 15500 | 21000 | ||
kg | 180 | 2125 | 4175 | 5565 | 7000 | 9450 | |||
Axial | lb | 1100 | 1500 | 2200 | 3100 | 3450 | 3900 | ||
kg | 500 | 680 | 1000 | 1400 | 1550 | 1770 | |||
Displacement | |||||||||
180° | in³ | 8.91 | 14.58 | 26.85 | 44.61 | 53.82 | |||
cm³ | 146 | 239 | 440 | 731 | 882 | 1080 | |||
Weight | |||||||||
180° | lb | 29 | 40 | 69 | 122 | 147 | 176 | ||
kg | 13 | 18 | 31 | 55 | 66 | 79 | |||
Dimension | |||||||||
L(Length) | in/mm | 7.40/188 | 8.50/135 | 9.75/248 | 8.66/220 | 9.25/235 | 9.65/245 | ||
D(Diameter) | in/mm | 4.10/104 | 4.60/117 | 5.60/142 | 6.70/170 | 7.15/182 | 7.70/196 | ||
H(Height) | H1 | in/mm | 5.90/150 | 6.54/166 | 7.44/189 | 8.82/224 | 9.25/235 | 9.80/249 | |
H2 | in/mm | 4.67/119 | 5.32/135 | 6.21/158 | 7.60/193 | 8.04/204 | 8.60/218 | ||
W(Width) | in/mm | 7.00/178 | 7.50/191 | 9.75/248 | 11.00/279 | 12.00/305 | 13.00/330 | ||
F1,F2 | inch | 6X3/8-16X0.54 | 8X8/16-16X0.54 | 8X1/2-13X0.75 | 8X3/4-10 X1.13 | 8X3/4-10 X1.21 | 10X3/4-10X1.25 | ||
Ø2.125 B.C. | Ø2.625 B.C. | Ø3.375 B.C. | Ø4.000 B.C. | Ø5.000 B.C. | Ø4.750 B.C. | ||||
metric | 6XM10-1.5X13 | 8XM10-1.5X15 | 8XM12-1.75X19 | 8XM20-2.5X30 | 8XM20-2.5X31 | 10XM20-2.5X32 | |||
Ø54 B.C. | Ø65 B.C. | Ø85 B.C. | Ø102 B.C. | Ø110 B.C. | Ø121 B.C. | ||||
DC series Specification | 20 | 30 | 50 | 70 | 100 | 140 | 180 | 240 | |||
Torque | |||||||||||
Drive | @3000psi | In-lb | 17000 | 25000 | 42000 | 65000 | 95000 | 125000 | 165000 | 215000 | |
@210bar | Nm | 1920 | 2820 | 4750 | 7340 | 10700 | 14100 | 18600 | 24300 | ||
Holding | In-lb | 430000 | 600000 | 106000 | 159000 | 230000 | 300000 | 398000 | 530000 | ||
Nm | 4900 | 6800 | 12000 | 18000 | 26000 | 34000 | 45000 | 60000 | |||
Maximum Moment Capacity | |||||||||||
Cantilever mount | In-lb | 45900 | 62500 | 105000 | 162000 | 261250 | 343750 | 495000 | 645000 | ||
Nm | 5200 | 7100 | 11900 | 18400 | 29500 | 38800 | 55900 | 72900 | |||
Straddle mount (for SS) | In-lb | 119000 | 150000 | 273000 | 423000 | 665000 | 875000 | 1155000 | 1505000 | ||
Nm | 13400 | 16900 | 30800 | 47800 | 75100 | 98900 | 130000 | 170000 | |||
Capacity | |||||||||||
Radial | lb | 4000 | 5000 | 8000 | 11000 | 15000 | 18000 | 22000 | 26000 | ||
kg | 1800 | 2300 | 3600 | 5000 | 6800 | 8200 | 10000 | 12000 | |||
Axial | lb | 3000 | 4000 | 6000 | 8000 | 10000 | 13000 | 15000 | 18000 | ||
kg | 1400 | 1800 | 2300 | 2700 | 3600 | 4500 | 5900 | 6800 | |||
Displacement | |||||||||||
180° | in³ | 30 | 42 | 72 | 114 | 163 | 215 | 283 | 366 | ||
cm³ | 485 | 691 | 1190 | 1865 | 2670 | 3530 | 4650 | 6000 | |||
360° | in³ | 60 | 85 | 144 | 228 | 327 | 432 | 569 | 730 | ||
cm³ | 961 | 1385 | 2366 | 3735 | 5365 | 7070 | 9315 | 11960 | |||
Weight | |||||||||||
180° | lb | 82 | 108 | 170 | 249 | 364 | 494 | 631 | 851 | ||
kg | 37 | 49 | 77 | 113 | 165 | 224 | 286 | 368 | |||
360° | lb | 108 | 146 | 223 | 315 | 452 | 653 | 829 | 1076 | ||
kg | 49 | 66 | 101 | 143 | 205 | 296 | 376 | 488 | |||

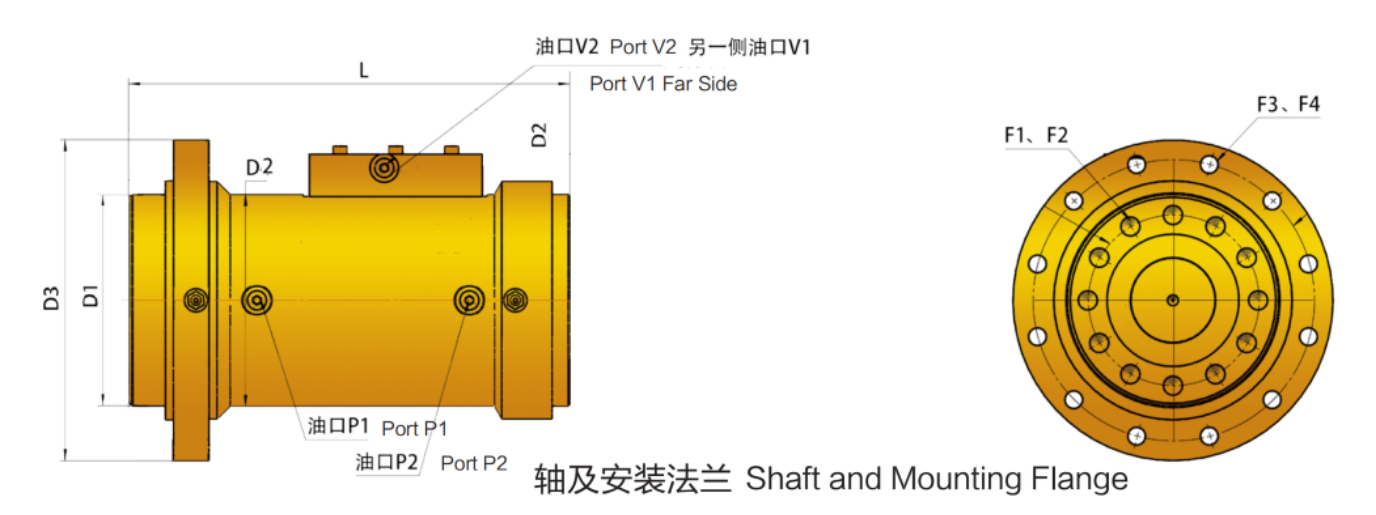

Dimension | |||||||||||
L(Length) | 180° | in/mm | 11.7/298 | 12.7/323 | 14.4/365 | 16.2/413 | 18.7/475 | 20.6/524 | 21.8/554 | 23.6/600 | |
360° | in/mm | 16.8/427 | 18.5/470 | 21.2/538 | 24.2/615 | 27.8/705 | 30.6/776 | 32.9/836 | 35.7/906 | ||
D1(Diameter) | in/mm | 5.5/139 | 6.1/155 | 7.2/183 | 8.2/209 | 9.2/234 | 10.3/263 | 11.3/288 | 12.2/310 | ||
D2(Diameter) | 5.5/139 | 6/152 | 7/178 | 8/203 | 9/229 | 10/254 | 11/279 | 12/406 | |||
D3(Diameter) | 7.9/200 | 9.3/235 | 11/280 | 12.4/315 | 14/355 | 15.6/396 | 17.4/442 | 18.7/475 | |||
F1,F2 | inch | 12X3/8-16 | 12X1/2-13 | 12X5/8-11 | 12X1/2-13 X0.75 | 12X3/4-10 | 12X7/8-9 | 12X1-8 | 12X1-8 | ||
Ø4.25 B.C. | Ø4.75 B.C. | Ø5.25 B.C. | Ø6.00 B.C. | Ø6.75 B.C. | Ø7.5 B.C. | Ø8.25 B.C. | Ø9.0 B.C. | ||||
metric | 12XM10-1.5 | 12XM12-1.75 | 12XM16-2 | 12XM20-2.5 | 12XM22-2.5 | 12XM24-3 | 12XM24-3 | 12XM27-3 | |||
Ø108 B.C. | Ø108 B.C. | Ø120 B.C. | Ø133 B.C. | Ø150 B.C. | Ø170 B.C. | Ø190 B.C. | Ø210 B.C. | ||||
F3,F4(foot mounted) | inch | 12X1/2-13 | 12X5/8-11 | 12X3/4-10 | 12X7/8-9 | 12X1-8 | 12X1 1/8-7 | 12X1 1/8-7 | 12X1 1/4-7 | ||
Ø3.9 B.C. | Ø4.2 B.C. | Ø4.7 B.C. | Ø5.2 B.C. | Ø5.7 B.C. | Ø6.2 B.C. | Ø6.7 B.C. | Ø7.2 B.C. | ||||
metric | 12XM12-1.75 | 12XM16-2 | 12XM20-2.5 | 12XM22-2.5 | 12XM24-3 | 12XM27-3 | 12XM27-3 | 12XM30-3.5 | |||
Ø99 B.C. | Ø106 B.C. | Ø118 B.C. | Ø131 B.C. | Ø144 B.C. | Ø156 B.C. | Ø169 B.C. | Ø182 B.C. | ||||
F3,F4(Flange mounted) | inch | 12X3/8 | 12X1/2 | 12X5/8 | 12X3/4 | 12X7/8X0 | 12X1 | 12X1 1/8 | 12X1 1/4 | ||
Ø6.9 B.C. | Ø8.1 B.C. | Ø9.6 B.C. | Ø10.8 B.C. | Ø12.2 B.C | Ø13.6 B.C. | Ø15.0 B.C | Ø16.1 B.C | ||||
metric | 12XM10 | 12XM12 | 12XM16 | 12XM20 | 12XM22 | 12XM24 | 12XM27 | 12XM30 | |||
Ø175 B.C. | Ø205 B.C. | Ø245 B.C. | Ø275 B.C. | Ø310 B.C. | Ø345 B.C. | Ø380 B.C. | Ø410 B.C. | ||||
